Usage
This device is a paper-surface UV glazing device suitable for various types of paper(80-600g/m2) when treated with this device, not only the gloss of the paper, but also the moisture and abrasion-resistance of printed matter is greatly improved.

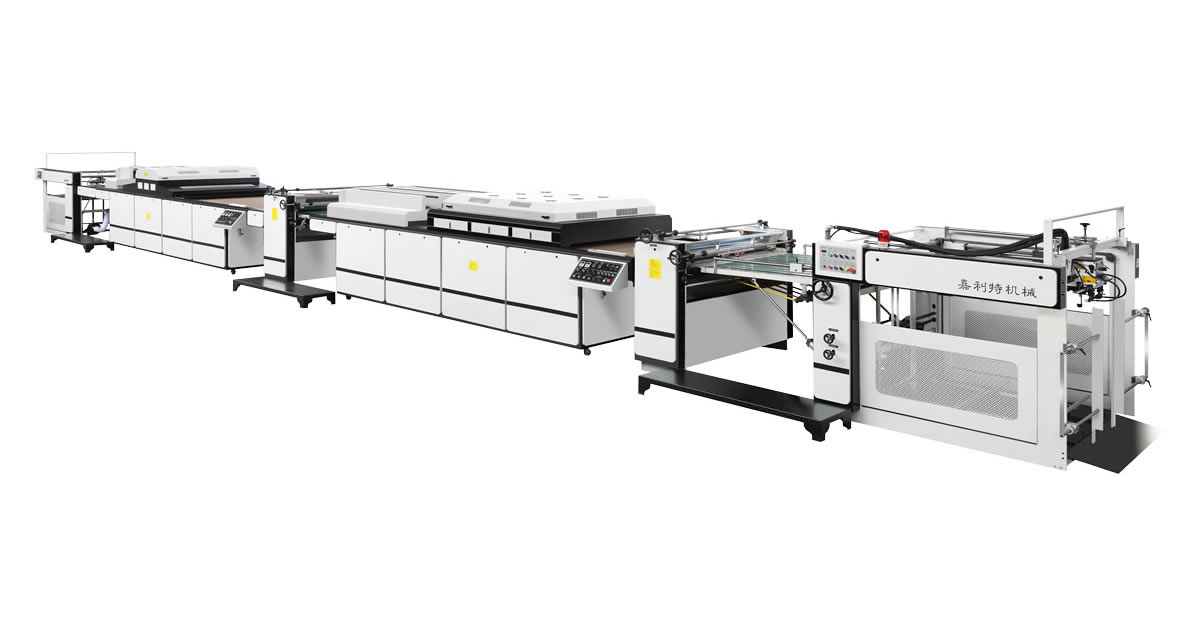

Specification For SGZ-II-1200 Automatic Glazing and Oil-coating Machine
Model | SGZ-II-1200 |
Length of Roller | 1250mm |
Suitable Paper Thickness | 80-500g/m2 |
Max Width of paper | 1150*900mm |
Power | 380V 50HZ |
Main motor power | 80w |
Infrared Heating power | 22kw |
Ultraviolet heating power | 3×8kw or 2×8kw |
Overall Dimensions | 19000×2000×1700mm |
Weight | 8000kg |
Characteristics:
It is widely used for surface treating of variors cards and cartons and is an ideal device for improving printing quality. It is good-looking, compact in structure, reliable and control of speed and temperature.
產品視頻
Mechanical color according to the actual picture video is for reference only, technical parameters performance and characteristics are subject to change without prior notice!
